Databases

uniTerm has a built-in database client that supports mainstream relational databases, Redis, MongoDB, and Elasticsearch.

Relational Databases

Supported Databases

SQL databases:

Database	Default Port
MySQL	3306
PostgreSQL	5432
Oracle	1521
SQL Server	1433
rqlite	4001

NoSQL databases:

Database	Default Port
Redis	6379
MongoDB	27017
Elasticsearch	9200

Connection Parameters

Parameter	Description
Host	Database server address. SQL Server supports the server\instance named-instance syntax; when no port is given, the instance port is resolved automatically via SQL Browser
Port	Default port auto-filled for each database type
Username	Database login user
Password	Database login password
Database Name	Default database to use after connecting (not required for rqlite)
SSH Tunnel	When enabled, encrypts the connection to intranet databases via an SSH jump host without exposing the database port

Database Navigation

The left-side tree panel displays the database hierarchy. After connecting, you can browse the three-level object structure: databases, tables, and views.

• Expand/Collapse -- Click the arrow to the left of a database name to expand the table list. Tables are shown with a grid icon, views with an eye icon for distinction
• Search -- Type keywords in the top search box to filter table and view names in real time. All databases are automatically expanded during search
• Double-click to Open -- Double-click a database name to enter its query page. Double-click a table or view name to enter the data browsing page

The context menu offers actions per node type:

• Database node -- Table and view list, New Query, Run SQL File, New Database, New Table, Drop Database, Refresh
• Table node -- Open Data, Table Structure, Copy Name, Copy Table, Export (structure only / data only / structure + data), Truncate Table, Drop Table
• View node -- Open Data, Copy Name, Export, Drop View
• Blank area -- New Query, New Database, Refresh

Data Query

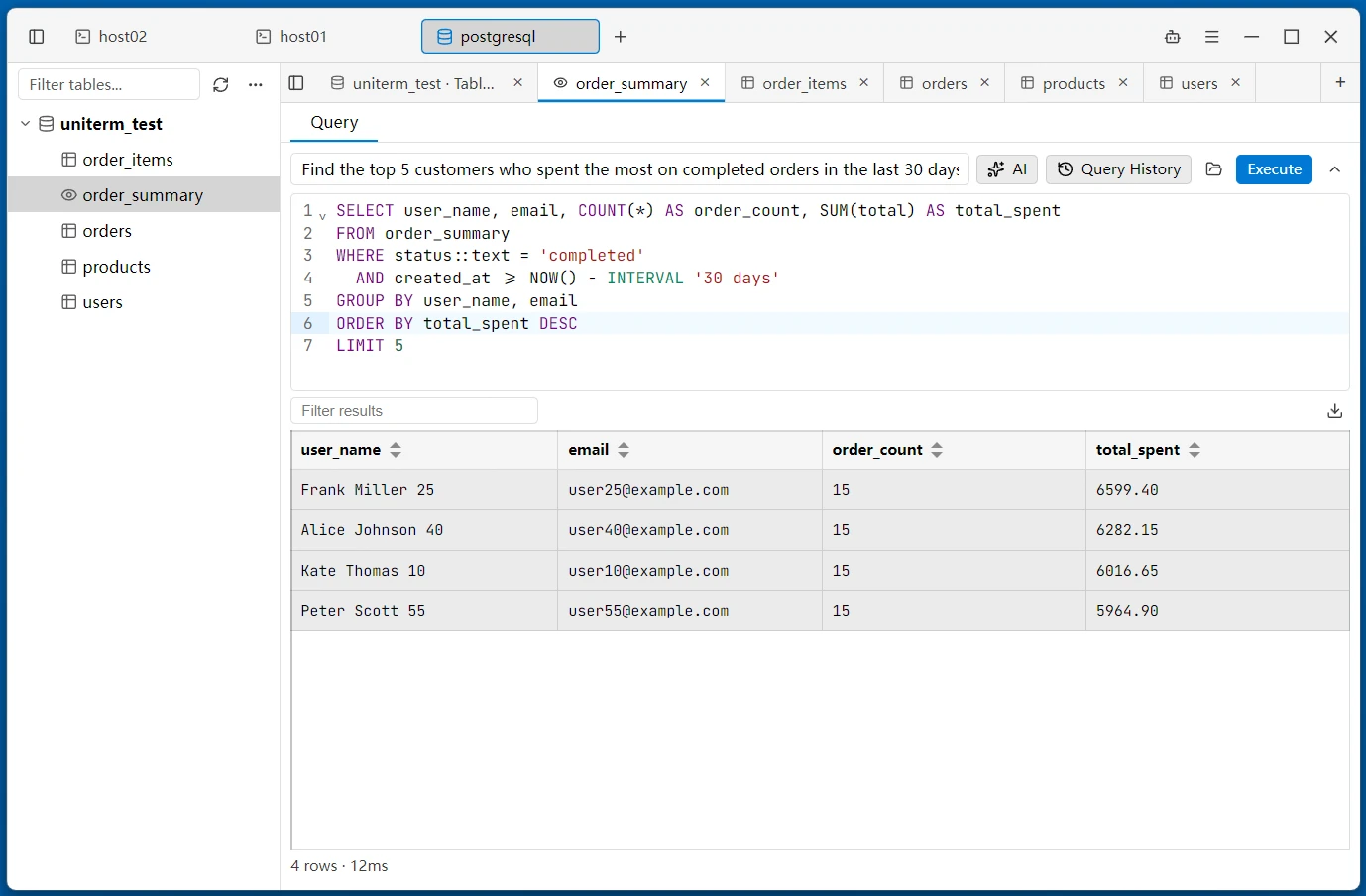

• AI Natural Language -- Describe the query in plain language in the AI input box at the top, and AI fetches table schemas to generate the SQL statement
• SQL Query -- Enter SQL and click Execute or press Ctrl+Enter to run. Results are displayed in a table, NULL values are shown in italics, and affected row count and elapsed time are displayed. Double-clicking a table name runs a default query for the first 100 rows
• Inline Editing -- Double-click a cell to edit it directly (nullable columns can be set to NULL in one click). Changes are staged first, and the save bar at the bottom saves or reverts them in batch (requires the query result to include the primary key column)
• Edit Row / Add Row / Delete Row -- Form-based operations with automatic detection of column types, default values, and auto-increment columns
• Query History -- The "Query History" panel in the toolbar records executed SQL, row counts, and elapsed time. Click an entry to fill it back in and re-run
• Export Results -- Query results can be exported as CSV / TXT / JSON
• Filter & Pagination -- The result toolbar filters in real time; data browsing mode supports pagination (100 / 200 / 500 rows per page)

Run SQL File

Right-click a database name and choose "Run SQL File" to execute .sql scripts in batch: on success, a prompt shows the number of statements executed and the cumulative affected rows; on failure, it reports the failing line number, error details, and the failed statement.

Table and View List

Double-click a database name to enter. Displays all tables and views in that database in table format, with support for search and sorting. Each row supports truncate table and drop table/view. Dangerous operations require entering the name for confirmation.

Table Structure Browser

Double-click a table name to enter. The left tree panel displays column information and index structure, including column name, data type, nullable, default value, primary key, auto-increment, and other details.

• Edit Column -- Modify column type, default value, comment, and collation
• Add Column -- Add a new column with type auto-completion hints
• Delete Column -- Confirm to delete
• Index Management -- Add or delete indexes

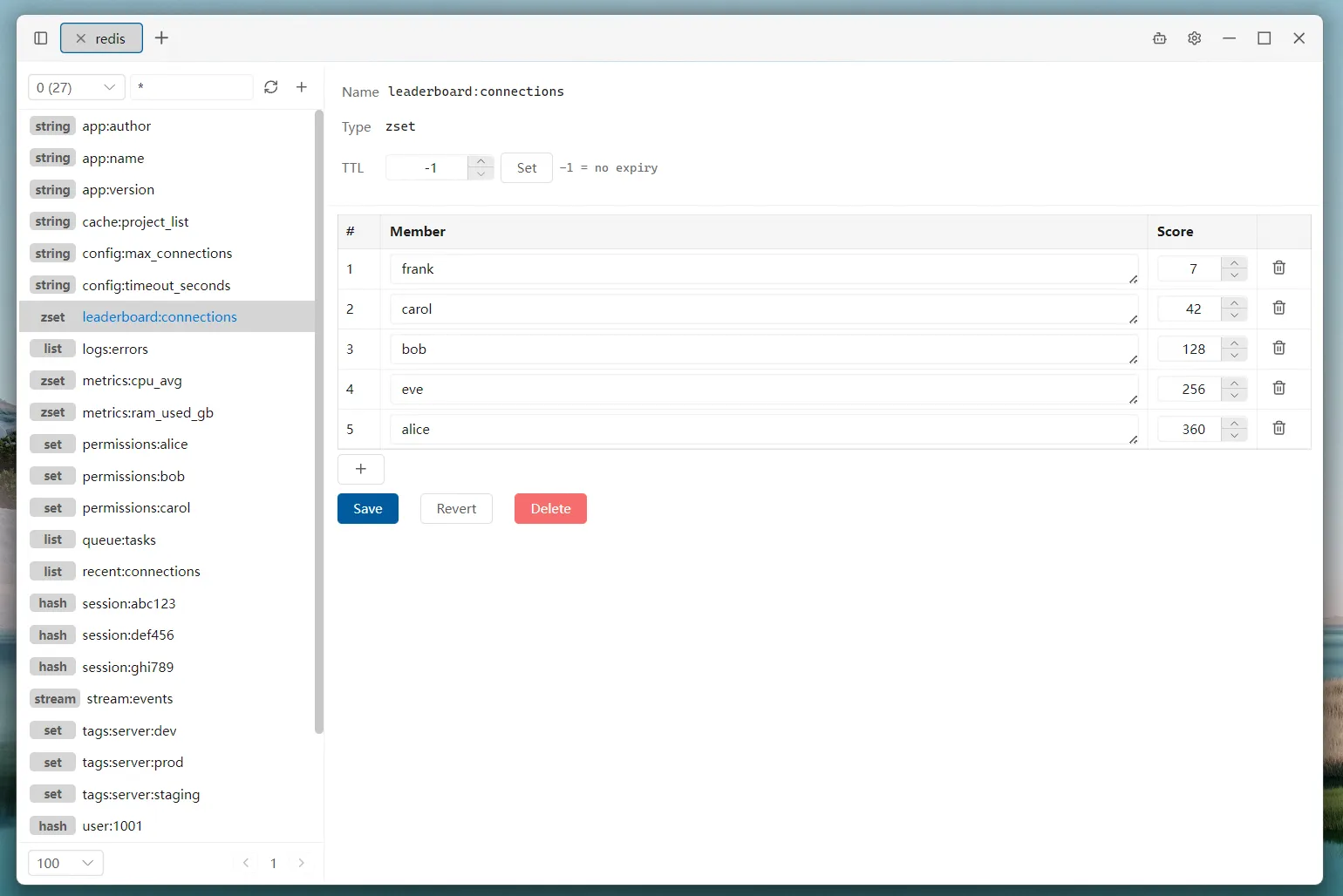

Redis

Redis provides key-value data browsing and management.

Connection Parameters

Parameter	Description
Host	Redis server address
Port	Default 6379
Username	Redis ACL username (optional, Redis 6+)
Password	Redis authentication password (optional)
Mode	Standalone / Sentinel. Sentinel mode requires the sentinel node addresses and the master name, with optional sentinel username / password
Key Separator	The delimiter used to organize key names into a folder tree, default :
SSH Tunnel	When enabled, encrypts the connection to intranet Redis via an SSH jump host

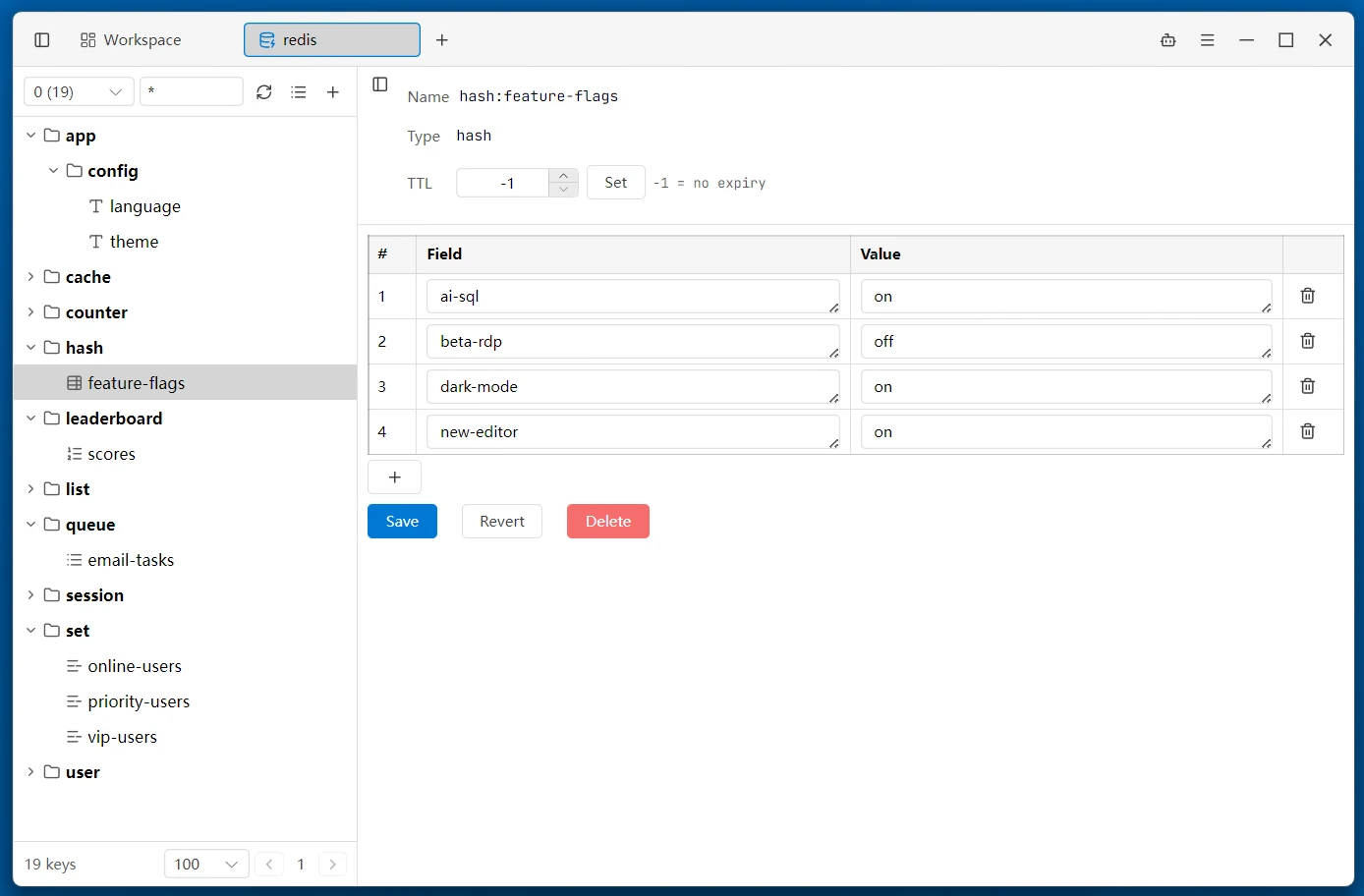

Key Browsing

The left panel shows all keys, with a toggle between tree view / flat view: in tree mode, key names are split into folder levels by the "Key Separator"; flat mode is a traditional list. Keys can be filtered by name search. After selecting a key, its value content is shown on the right, with different types rendered in their corresponding formats.

The context menu provides the following operations:

• New -- Create a new key
• Edit -- Modify value, rename
• Manage -- Delete key (requires confirmation), set or remove expiration time
• Refresh -- Reload the key list

Key Operations

• New Key -- Select a data type and create a new key by entering the key name and value
• View/Edit Value -- Select a key to view its value content. Click edit to enter modification mode and save
• Rename Key -- Change the key name
• Delete Key -- Select a key and delete it (requires confirmation)

TTL Management

• Set Expiration -- Set an expiration time when creating or editing a key
• Remove Expiration -- Remove the expiration time to make the key persistent

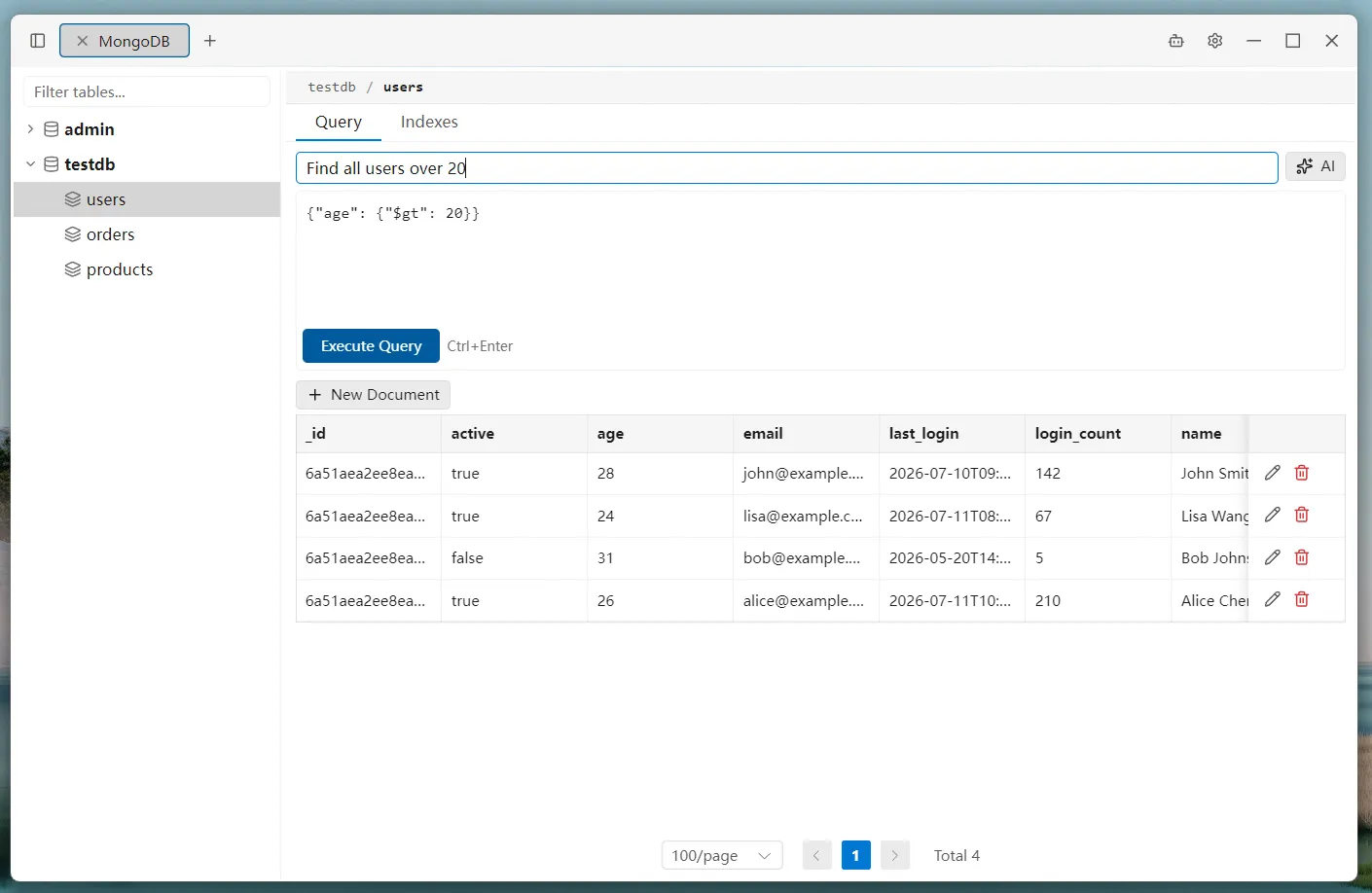

MongoDB

MongoDB provides document database browsing, querying, and inline document editing.

Connection Parameters

Parameter	Description
Host	MongoDB server address
Port	Default 27017
Username	MongoDB login user (optional)
Password	MongoDB authentication password (optional)
SSH Tunnel	When enabled, encrypts the connection to intranet MongoDB via an SSH jump host. Connection auto-detection is available when the SSH host runs mongod

Database Navigation

The left-side tree panel displays the MongoDB hierarchy: databases, collections, and indexes.

• Expand/Collapse -- Click the arrow to browse databases and collections
• Right-click Menu -- Create/drop databases and collections via the context menu

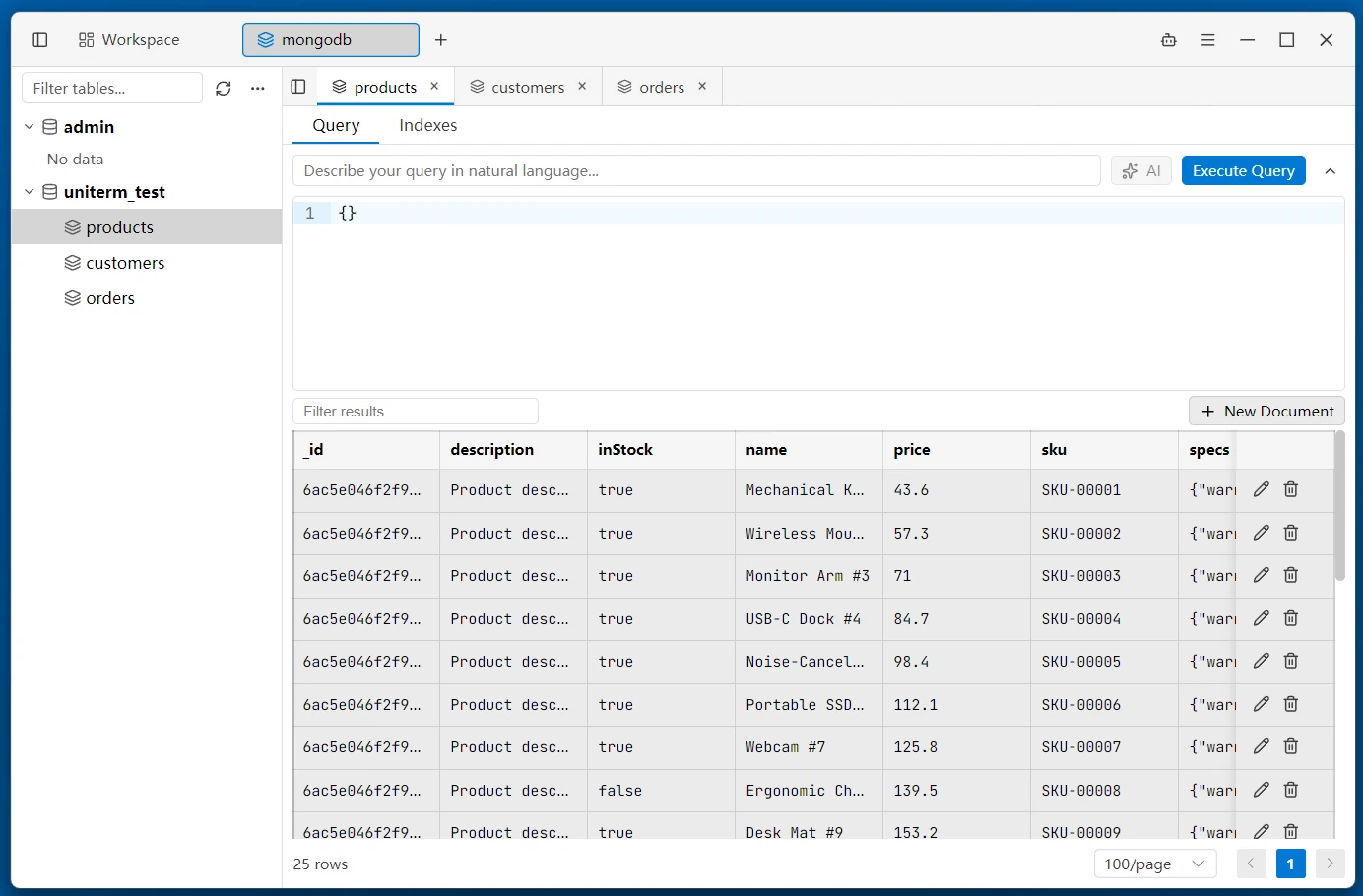

Query Editor

• Filter Query -- Enter a MongoDB Extended JSON filter and click Execute or press Ctrl+Enter to run. Results are displayed in a paginated table
• Aggregation -- Write aggregation pipelines for advanced data processing
• AI Natural Language -- Describe the query in plain language in the AI input box at the top, and AI generates the MongoDB filter automatically based on the collection schema

Document Editing

• View Document -- Click a document to view its full content
• Edit Document -- Modify document fields inline and save
• Insert Document -- Insert a new document with JSON content
• Delete Document -- Delete a document with confirmation

Index Management

View existing indexes, create new indexes with custom keys and options.

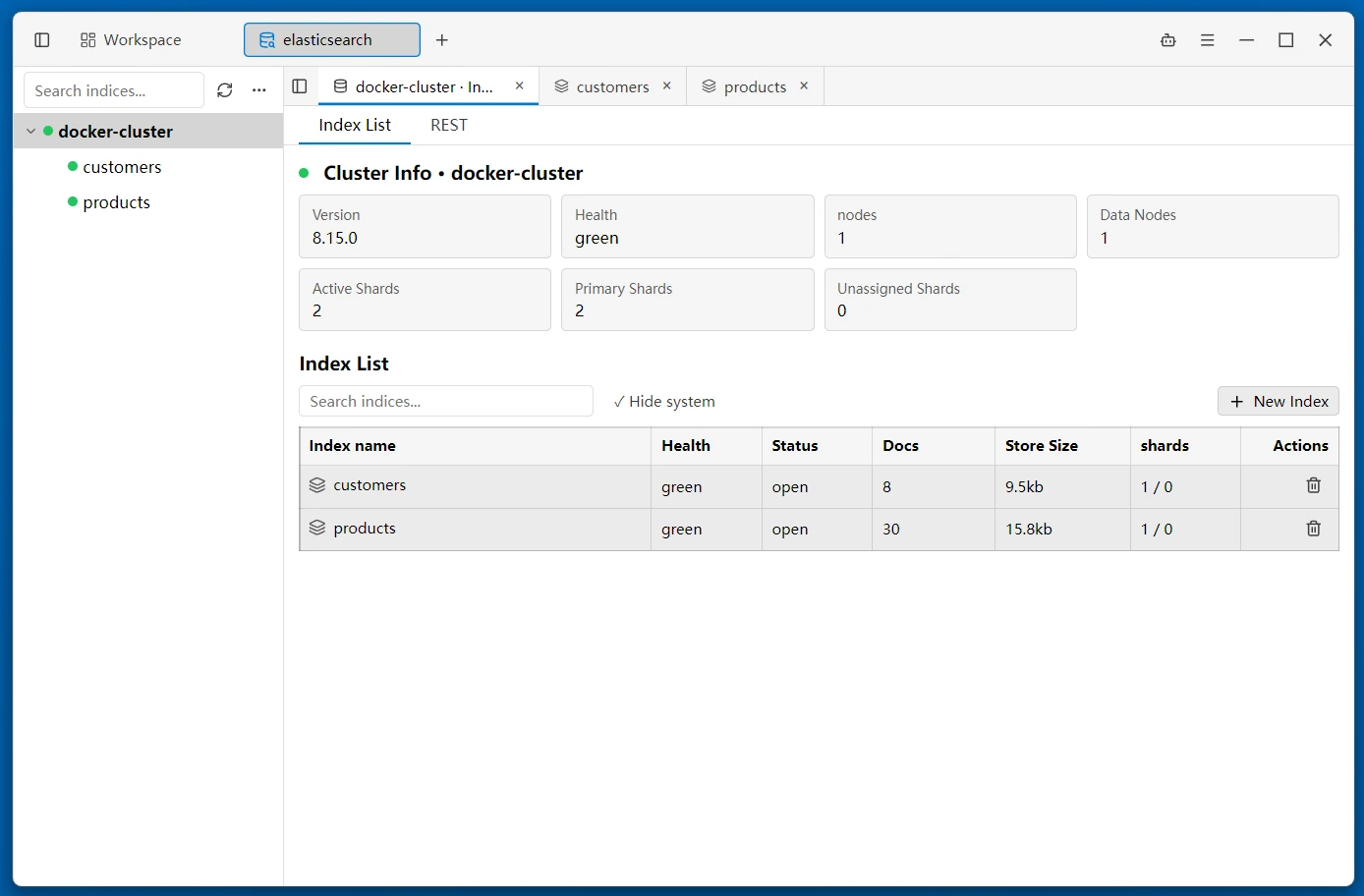

Elasticsearch

Elasticsearch provides browsing and management of clusters, indexes, and documents.

Cluster Browsing

• Cluster Tab -- View cluster info, node list, data nodes, shard distribution, and health status
• Index List -- Search indexes, hide system indexes, create a new index; open / close / delete indexes

Document Management

• Multi-tab View -- Each index can be opened in its own document tab
• Document CRUD -- Create (leave the ID empty to auto-generate), edit, and delete documents
• Query -- Three ways to query: simple queries (e.g. status:active), DSL queries, and REST requests
• Mapping / Settings -- View the index structure and configuration
